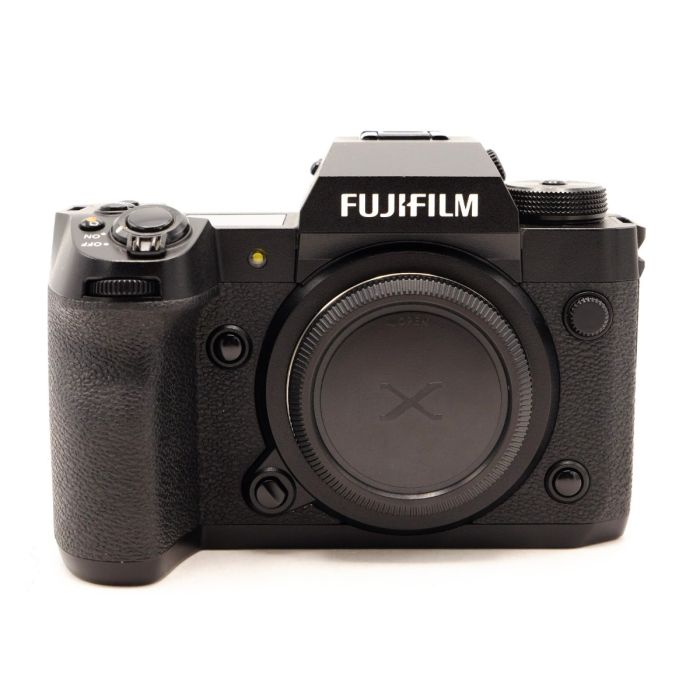

Fujifilm X-H2 Camera Body (Occ)

odel name
FUJIFILM X-H2
Lens Mount
FUJIFILM X mount
Image sensor
23.5mm x 15.6mm (APS-C) X-Trans CMOS 5 HR with primary color filter
Number of effective pixels
40.2 millions pixels
Sensor Cleaning System
Ultra Sonic Vibration
Image Processing Engine
X-Processor 5
Storage media
SD Card (-2GB) / SDHC Card (-32GB) / SDXC Card (-2TB) / UHS-I / UHS-II / Video Speed Class V90 / CFexpress Type B Card (-2TB)

*Please check Compatibilityfor more detail.
*Please check the list of the operation confirmed CFexpress Type B Card
File format of still image
DCF
Compliant with Design rule for Camera File system (DCF2.0)

JPEG
Exif Ver.2.32*1

HEIF
4:2:2 10bit

RAW
14bit RAW (RAF original format)

TIFF
8bit / 16bit RGB (In-camera Raw Conversion Only)
Number of recorded pixels
［L］
〈4:3〉 6864 x 5152 〈3:2〉 7728 x 5152 〈16:9〉 7728 x 4344 〈1:1〉 5152 x 5152 〈5:4〉 6432x5152

［M］
〈4:3〉 4864 x 3648 〈3:2〉 5472 x 3648 〈16:9〉 5472 x 3080 〈1:1〉 3648 x 3648 〈5:4〉 4560x3648

［S］
〈4:3〉 3464 x 2592 〈3:2〉 3888 x 2592 〈16:9〉 3888 x 2184 〈1:1〉 2592 x 2592 〈5:4〉 3264x2592
Panorama
［L］
〈vertical〉 9600 x 2160 〈Horizontal〉 9600 x 1440

［M］
〈vertical〉 6400 x 2160 〈Horizontal〉 6400 x 1440
Digital Tele-Converter
2.0x / 1.4x / OFF
Sensitivity
Still Image
Standard Output: AUTO1 / AUTO2 / AUTO3 /ISO125-12800 (1/3 step)
Extended Output: ISO64 / ISO80 / ISO100 / ISO25600 / ISO51200

Movie
Standard Output: AUTO / ISO125-12800 (1/3 step)
Extended Output: ISO25600
Exposure control
TTL 256-zone metering / Multi / Spot / Average / Center Weighted
Exposure mode
P (Program AE) / A (Aperture Priority AE) / S (Shutter Speed Priority AE) / M (Manual Exposure)
Exposure compensation
Still
-5.0EV - +5.0EV　1/3EV step

Movie
-2.0EV - +2.0EV 1/3EV step
Image stabilizer
Mechanism
Image sensor shift mechanism with 5-axis compensation

Compensation Effect
7.0 stops
*based on CIPA standard
*Pitch/yaw shake only
*With XF35mmF1.4 R lens mounted

Digital Image Stabilization
Yes (movie mode only)

IS MODE BOOST
Yes (movie mode only)
Shutter type
Focal Plane Shutter
Shutter speed
Mechanical shutter
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.

Electronic shutter
P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: 1sec. Fixed

Electronic front curtain shutter
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.

Mechanical + Electronic shutter
P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min.
*Mechanical shutter works until 1/8000sec.

E-front + Mechanical shutter
P mode: 4sec. to 1/8000sec. A mode: 30sec. to 1/8000sec. S/M mode: 15min. to 1/8000sec. Bulb: up to 60min.
*Electronic front curtain shutter works until 1/2000sec.

E-front + Mechanical + Electronic shutter
P mode: 4sec. to 1/180000sec. A mode: 30sec. to 1/180000sec. S/M mode: 15min. to 1/180000sec. Bulb: up to 60min.
*Electronic front curtain shutter works until 1/2000sec, Mechanical shutter works until 1/8000sec.
*The Electronic Shutter may not be suitable for fast-moving objects or handheld shooting. Flash cannot be used.

Movie
8K: 1/8000sec. to 1/24 sec. 6.2K: 1/8000sec. to 1/24 sec. DCI4K/4K: 1/8000sec. to 1/4 sec. FHD: 1/8000sec. to 1/4 sec.
*Cannot choose slower shutter speed than framerate for some settings.

Synchronized shutter speed for flash
Mechanical shutter: 1/250sec. or slower
Electronic shutter: 1/125sec. or slower
Continuous shooting
CH Electronic shutter Approx. 20fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 202 frames, Compressed RAW + JPEG 129 frames, Lossless compressed RAW + JPEG 95 frames, Uncompressed RAW + JPEG 90 frames)

CH Electronic shutter Approx. 13fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW + JPEG 372 frames, Lossless compressed RAW + JPEG 361 frames, Uncompressed RAW + JPEG 223 frames)

CH Electronic shutter Approx. 10fps (1.29x Crop) (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW + JPEG 1000+ frames, Lossless compressed RAW + JPEG 1000+ frames, Uncompressed RAW + JPEG 1000+ frames)

CH Electronic shutter Approx. 13fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 131 frames, Lossless compressed RAW+JPEG 131 frames, Uncompressed RAW+JPEG 127 frames)

CH Electronic shutter Approx. 8.9fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 769 frames, Lossless compressed RAW+JPEG 751 frames, Uncompressed RAW+JPEG 302 frames)

CH Mechanical shutter Approx. 15fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 400 frames, Compressed RAW+JPEG 110 frames, Lossless compressed RAW+JPEG 108 frames, Uncompressed RAW+JPEG 104 frames)

CH Mechanical shutter Approx. 10fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 512 frames, Lossless compressed RAW+JPEG 492 frames, Uncompressed RAW+JPEG 223 frames)

CH Mechanical shutter Approx. 7.0fps (JPEG 1000+ frames, Compressed RAW 1000+ frames, Lossless compressed RAW 1000+ frames, Uncompressed RAW 1000+ frames, Compressed RAW+JPEG 1000+ frames, Lossless compressed RAW+JPEG 1000+ frames, Uncompressed RAW+JPEG 1000+ frames)

Pre-shot Electronic shutter Approx. 20fps (1.29x Crop) (While half press 20 frames, After full press 1000+ frames)
Pre-shot Electronic shutter Approx. 13fps (1.29x Crop) (While half press 13 frames, After full press 1000+ frames)
Pre-shot Electronic shutter Approx. 10fps (1.29x Crop) (While half press 10 frames, After full press 1000+ frames)
Pre-shot Electronic shutter Approx. 13fps (While half press 13 frames, After full press 1000+ frames)

*No. of recordable frames are calculated based on CFexpress Type B card in a cold start
*Recordable frames depends on recording media
*Speed of continuous shooting depends on shooting environment and shooting frames
Drive Mode
AE Bracketing
2 frames / 3 frames / 5 frames / 7 frames / 9 frames
*by 1/3EV step, up to ±3EV steps

Filmsimulation bracketing
Any 3 types of film simulation selectable

Dynamic Range Bracketing
100% / 200% / 400%

ISO sensitivity Bracketing
±1/3EV / ±2/3EV / ±1EV

White Balance Bracketing
±1 / ±2 / ±3

Focus Bracketing
AUTO / MANUAL

Multiple Exposure
Yes (Max. 9 frames) / Additive / Average / Bright / Dark

HDR Mode
AUTO / 200% / 400% / 800% / 800% +

Advanced filter
Toy camera / Miniature / Pop color / High-key / Low-key / Dynamic tone / Soft focus / Partial color (Red / Orange / Yellow / Green / Blue / Purple)

Pixel Shift Multi Shot
Yes
Focus
Mode
Single AF / Continuous AF / MF

Type
Intelligent Hybrid AF (TTL contrast AF / TTL phase detection AF)

Low-light Performance
Contrast: -4.0EV XF50mmF1.0 attached
Phase Detection: -7.0EV XF50mmF1.0 attached

AF frame selection
Single point AF: 13x9 / 25x17 (Changeable size of AF frame)
Zone AF: 3x3 / 5x5 / 7x7 from 117 areas on 13×9 grid
Wide/Tracking AF: Yes (AF-S: Wide / AF-C: Tracking)
All: Yes

Face/eye detection
Yes

Subject detection
Yes (Animal/Bird/Automobile/Motorcycle&Bike/Airplane/Train)
Flash
EF-X8
Guide Number: approx. 11 (ISO200・m) / approx. 8 (ISO100・m)
Sync. Mode: 1st Curtain / 2nd Curtain
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / COMMANDER / OFF

Shoe mount flash
Sync. Mode: 1st Curtain / 2nd Curtain / AUTO FP (HSS)
Flash Mode: TTL (TTL AUTO / STANDARD / SLOW SYNC. ) / MANUAL / MULTI *When EF-X500 is set / OFF

Synchronized terminal
Sync. Mode: 1st Curtain / 2nd Curtain
Flash Mode: MANUAL
Hot shoe
Yes (Dedicated TTL Flash compatible)
Viewfinder
EVF: 0.5 inch OLED Color Viewfinder, Approx. 5.76 million dots
Coverage of Viewing Area vs. Capturing Area: Approx. 100%
Eyepoint: Approx. 24mm (from the Rear End of the Camera's Eyepiece)
Diopter Adjustment: -5～+3m-1
Magnification: 0.80x with 50mm Lens (35mm Equivalent) at infinity and Diopter set to -1.0m-1
Diagonal Angle of View: approx. 40° (Horizontal angle of view: approx. 32° )
Built-In Eye Sensor
LCD monitor
3.0 inch vari-angle Touch Screen Color LCD Monitor
Aspect Ratio: 3:2
Dots: Approx. 1.62 million dots
Touch Screen Mode
Shooting Mode
Shooting, AF, Focus Area, OFF, Double Tap Setting (ON/OFF), Touch Function Setting (ON/OFF), Touch Zoom (ON/OFF), EVF Touch Screen Area Setting

Playback Mode
Swipe, Pinch-in / Pinch-out, Double-tap, Drag
Sub LCD monitor
1.28 inch Monochrome LCD Monitor
Aspect Ratio: 1:1
Dots: 128x128-dot
Movie recording
File format
MOV:
Apple ProRes 422 HQ, Linear PCM (Stereo sound 24bit / 48KHz sampling)
Apple ProRes 422, Linear PCM (Stereo sound 24bit / 48KHz sampling)
Apple ProRes 422 LT, Linear PCM (Stereo sound 24bit / 48KHz sampling)
HEVC/H.265, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MPEG-4 AVC/H.264, Linear PCM (Stereo sound 24bit / 48KHz sampling)
MP4:
MPEG-4 AVC/H.264, AAC

Movie compression
All Intra / Long GOP

File size
Frame rate
Bitrate
[8K(16:9)] 7680 x 4320　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[6.2K(16:9)] 6240 x 3510　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[DCI4K HQ(17:9)] 4096 x 2160　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[4K HQ(16:9)] 3840 x 2160　29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[DCI4K(17:9)] 4096 x 2160　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[4K(16:9)] 3840 x 2160　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(17:9)] 2048 x 1080　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(16:9)] 1920 x 1080　59.94p/50p/29.97p/25p/24p/23.98p　720Mbps/360Mbps/200Mbps/100Mbps/50Mbps
[Full HD(17:9) High speed rec.] 2048 x 1080　240p/200p/120p/100p　720Mbps(recording)/360Mbps(recording)/200Mbps(recording)
[Full HD(16:9) High speed rec.] 1920 x 1080　240p/200p/120p/100p　720Mbps(recording)/360Mbps(recording)/200Mbps(recording)

*For recording movies, use a CFexpress Type B card or SD memory card with UHS Speed Class 3 or higher.
*For recording movies in 360Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 60 or higher.
*For recording movies in 720Mbps, use a CFexpress Type B card or SD memory card with Video Speed Class 90 or higher.
*Selectable bitrate will be changed depends on the setting.
*Apple ProRes codec can be only recorded to CFexpress Type B card
*Bitrate for Apple ProRes codec is not selectable.
*Recording time can become short depending on the temperature and/or shooting conditions
Film simulation mode
19 modes (PROVIA/Standard, Velvia/Vivid, ASTIA/Soft, Classic Chrome, PRO Neg.Hi, PRO Neg.Std, Classic Neg., Nostalgic Neg., ETERNA/Cinema, ETERNA BLEACH BYPASS, ACROS, ACROS + Ye Filter, ACROS + R Filter, ACROS + G Filter, Black & White, Black & White + Ye Filter, Black & White + R Filter, Black & White + G Filter, Sepia)
Monochromatic Color
Yes
Grain Effect
Roughness
STRONG, WEAK, OFF

Size
LARGE, SMALL
Color Chrome Effect
STRONG, WEAK, OFF
Color chrome Blue
STRONG, WEAK, OFF
Smooth Skin Effect
STRONG, WEAK, OFF
Dynamic range setting
Still
AUTO / 100％ / 200％ / 400％
ISO restriction: DR100%: No limit、DR200%: ISO250 or more、DR400%: ISO500 or more

Movie
100％ / 200％ / 400％
ISO restriction: DR100%: No limit、DR200%: ISO250 or more、DR400%: ISO500 or more
White balance
Auto
White Priority / Auto / Ambience Priority

Custom
Custom1 - 3

Color temperature selection
2500K-10000K

Preset
Daylight / Shade / Fluorescent Light-1 / Fluorescent Light-2 / Fluorescent Light-3 / Incandescent Light / Underwater
Clarity setting
±5 steps
Self-timer
10sec. / 2sec.
Interval timer shooting
Yes (Setting : Interval, Number of shots, Starting time, Interval timer shooting exposure smoothing)
Wireless transmitter
Standard
IEEE802.11a/b/g/n/ac (standard wireless protocol)

Encryption
WPA/WPA2 mixed mode, WPA3

Access mode
Infrastructure
Bluetooth®
Standartd
Bluetooth Ver. 4.2 (Bluetooth low energy)

Operating frequency (Center frequency)
2402 - 2480MHz
Terminal
Digital interface
USB Type-C (USB3.2 Gen2x1)

HDMI output
HDMI connector (Type A)

Others
ø3.5mm, stereo mini connector (Microphone)
ø3.5mm, stereo mini connector (Headphone)
ø2.5mm, Remote Release Connector
Hot shoe
Synchronized terninal
Power supply
NP-W235 Li-ion battery (included)

Battery life for still images*2
Economy Mode: Approx. 680 frames
Normal Mode: Approx. 540 frames
*When XF35mmF1.4 R is set

Actual battery life of movie capture*2
8K: Approx. 70min. (29.97p)
4K: Approx. 75min. (59.94p)
Full HD: Approx. 85min. (59.94p), Approx. 90min. (120P)
*Face detection is set to OFF

Continuance battery life of movie capture*2
8K: Approx. 100min. (29.97p)
4K: Approx. 120min. (59.94p)
Full HD: Approx. 140min. (59.94p)
*Face detection is set to OFF
Dimensions
Width: 136.3mm
Height: 92.9mm
Depth: 84.6mm
(Minimum Depth: 42.8mm)
Weight
including battery and memory card: Approx. 660g
excluding battery and memory card: Approx. 579g
Operation Environment
Operating Temperature
-10℃ - +40℃
